CAMAVISION THERMAL IMAGING CAMERAS – CMD25K
The New CMD25K Camavision Thermal Imaging is one of Top-notch technological cameras. With a high focal vision that can see through mist, detect chemicals as entered on its panel and give you direct visual of what is 1000sq yards away. These are used in Advanced applications such as direct and Manoeuvring of sites in road constructions, mining and exploration. Literally thousands of components can be scanned per shift without the need to interrupt the process.
- Specifications
| Model Number | CMD25K |
| Imaging Specifications | |
| Detector Type | Cooled InSb |
| Spectral Response | 7.52 – 4.67 μm |
| Resolution | 420 × 320 |
| Total Pixels | 96,800 |
| Thermal Sensitivity | <55 mK @ +30°C (+86°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range >+100°C (>+212°F) |
| Temperature Range | -20°C to 300°C (-4°F to 572°F) |
| High Temp Option | No |
| Lens Options | Standard: 24° × 18°; Optional: 14.5°, 6° |
| Zoom | 1 – 8× continuous digital |
| Focus | Auto & Manual |
| Color LCD | 4.3”; 800 × 480 Pixels |
| Adjustable Viewfinder | Tiltable OLED, 800 × 480 pixels |
| Video Camera w/Lamp | 3.2 MP |
| Laser Spot | Yes |
| Video Out | HDMI |
| Analysis | |
| Spotmeters | 10 |
| Area Boxes | 5 (min./max./avg.)* |
| Profiles | 1 live line (horiz. or vert.)* |
| Delta T | Yes* |
| Annotation | |
| GPS | Yes |
| File Storage | |
| Radiometric JPG | Yes |
| Radiometric Video (15Hz) | No |
| MPEG Video Recording | Yes |
GANTRA IMAGING CAMERA GIC4K
Optical gas imaging camera that lets you see CO2 leaks quickly, easily, and from a safe distance. Whether CO2 is a byproduct of a production process, a trace gas used to detect leaks from power generators, or as part of an Enhanced Oil Recovery program, fast and accurate detection of CO2 leaks is key to keeping your operation running safely, efficiently, and profitably.
-
Specifications
| Model Number | GF343 |
| Imaging Specifications | |
| Detector Type | Cooled InSb |
| Spectral Response | 4.2 – 4.4 μm |
| Resolution | 320 × 240 |
| Total Pixels | 76,800 |
| Thermal Sensitivity | <15 mK @ +30°C (+86°F) |
| Lens Options | Standard: 24° × 18°; Optional: 14.5°, 6° |
| Zoom | 1 – 8× continuous digital |
| Focus | Auto & Manual |
| Color LCD | 4.3”; 800 × 480 Pixels |
| Adjustable Viewfinder | 800 × 480 Pixels |
| Video Camera w/Lamp | 3.2 MP |
| Laser Spot | Yes |
| Video Out | HDMI |
| Annotation | |
| GPS | Yes |
| File Storage | |
| Radiometric JPG | Yes |
| MPEG Video Recording | Yes |
SUPER 05 POWER NEC
Literally thousands of components can be scanned per shift without the need to interrupt the process. It reduces repair downtime and provides verification of the process. Above all it is exceptionally safe, allowing potentially dangerous leaks to be monitored from several meters away. FLIR will significantly improve your work safety, environmental and regulatory compliance, not to mention helping to improve the bottom line by finding leaks that essentially decrease profits. The new now embeds GPS data into the image allowing workers to pinpoint the location of the leak or hot spot.
-
Specifications
| Model Number | SP500/520 |
| Imaging Specifications | |
| Detector Type | Cooled InSb |
| Spectral Response | 3.2 – 3.4 μm |
| Resolution | 320 × 240 |
| Total Pixels | 76,800 |
| Thermal Sensitivity | <15 mK @ +30°C (+86°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range >+100°C (>+212°F) |
| Temperature Range | -20°C to 350°C (-40°F to 662°F) |
| High Temp Option | Yes |
| Lens Options | Standard: 24° × 18°; Optional: 14.5°, 6° |
| Zoom | 1 – 8× continuous digital |
| Focus | Auto & Manual |
| Color LCD | 4.3”; 800 × 480 Pixels |
| Adjustable Viewfinder | Tiltable OLED, 800 × 480 pixels |
| Video Camera w/Lamp | 3.2 MP |
| Laser Spot | Yes |
| Video Out | HDMI |
| Analysis | |
| Spotmeters | 10* |
| Area Boxes | 5 (min./max./avg.)* |
| Profiles | 1 live line (horiz. or vert.)* |
| Delta T | Yes* |
| Annotation | |
| GPS | Yes |
| File Storage | |
| Radiometric JPG | Yes |
| Radiometric Video (15Hz) | No |
| MPEG Video Recording | Yes |
CVY2140 WATER PUMPS
The CVY2140 60/32M water pump is a compact and reliable centrifugal pump rated at 0.37kW. This pump is a cost-effective solution for water delivery from rainwater harvesting tanks to toilets, kitchen appliances or your garden hose.
- Compact and sturdy centrifugal pump for domestic installations
- Capable of generating high heads up to 31m
- Suitable for water supply to 2 toilets, or a washing machine, or a dishwasher or a garden hose
- Rotor running on permanently lubricated ball bearings, oversized to ensure reduced noise and durability
- For CVY2140 60/32M with CVY2140 SMART PRESS pressure controller.
Shipping takes 2-5 working days in SA. 14-day return policy. Standard 6-month manufacturer guarantee, unless extended guarantee is specified below.
For over 10 years, Giant Electrical has been a main player in the sector of the technologies for the movement and management of our most precious resource, water.
he CVY2140 60/32M Performance Curve:
Technical Specs:
- Operating range: Up to 30 l/min; head up to 31m
- P2 nominal power: 0.37kW, 0.5HP
- Pumped liquid: clean, free of solids and abrasives, non-viscous, non-aggressive, non-crystallized and chemically neutral, with properties similar to water
- Liquid temperature range: from 0 °C to +35 °C
- Maximum operating pressure: 6 bar (600kPa)
- Installation: fixed, horizontal position
- Motor protection class: IP 44
- Protection class at the terminal board: IP 55
- Insulation class: F
- Dimensions [L x W x H]: 262mm x 140mm x 180mm
- Weight: 5.3kg

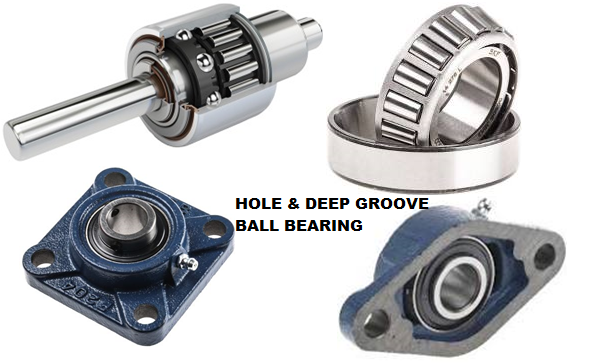

RDK-320M HOLE & DEEP GROOVE BALL BEARING
Product Details
Deep Groove Ball Bearings
Deep groove ball bearings are versatile. They are simple in design, non-separable, suitable for high speeds and are robust in operation, requiring little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from RDK-320M in many designs, variants and sizes.
Product Application Information
RDK-320M single and double row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields).
Double row deep groove ball bearings are only available as open bearings (without seals or shields).
Suffixes
2RS1 – Contact seal, NBR, on one or both sides 2Z – Shield on one or both sides
C3 – Radial internal clearance greater than normal
2RZ – Non-contact seal, NBR, on one or both sides
| Attribute | Value |
|---|---|
| Inside Diameter | 10mm |
| Outside Diameter | 30mm |
| Ball Bearing Type | Deep Groove |
| Race Width | 9mm |
| End Type | Open |
| Number of Rows | 1 |
| Static Load Rating | 2.36kN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Race Material | Steel |
| Race Type | Plain |
| Dynamic Load Rating | 5.4kN |
| Bore Type | Parallel |
QH77D MEDICAL OXYGEN GAS CYLINDER
Aluminium Medical Oxygen Cylinder
D Size: 7603 DOT-approved Aluminium Oxygen GAS Cylinder 19KG
The cylinder weighs and is just under 20 inches in length. Using the RESOURCE v.2 pneumatic conserving device this cylinder can supply 27 hours of oxygen or just over 57 hours using the SOLO4 pneumatic conserving device. Administration Kit (947 litre
This cylinder can be conveniently transported using the MERET NZ100M3 shoulder bag or the M4908 RECOVER O4 response bag.
This cylinder comes standard 570 Valve and 04Go System
Medical Cylinders We offer the widest range of medical gas cylinders to suit all clinical requirements. You can be sure that we will have a cylinder to suit all your needs.
Maxland Healthcare provides medicinal gases in a variety of cylinder sizes.
We have a cylinder type and size to suit all requirements. These include lightweight portable cylinders for use in ambulances and at home, cylinders to fit a range of medical equipment such as anaesthetic machines or ventilators, and larger cylinders to supply piped gas direct to wards.
Our cylinder packages are robust and designed to suit the needs of the modern healthcare environment.
All Maxland Healthcare cylinders and valves meet the Transportable Pressure Equipment Directive (TPED) and are marked accordingly. All Maxland General cylinders and valves are specified on the appropriate Marketing Authorisation (MA) and approved for use by the MHRA. Where appropriate the valves are approved by a notified body and CE marked to the Medical Device Directive.
Within our range are:
traditional steel cylinders fitted with pin index valves
lightweight cylinders fitted with integral valves providing a nominal 4 bar outlet pressure
high capacity cylinders, filled to pressures up to 300 bar
QH77D SKYO Medical Oxygen Gas Cylinder
Approved Aluminium Oxygen GAS Cylinder 25KG
Description:
Pressure Direction: single acting medical oxygen gas cylinder
Vertical High Pressure
Ambient temperature -42-59ºC
Outer diameter of the cylinder shell: 300mm
Aluminium material: HP296
Design wall thickness 2.6mm
Nominal wall thickness 4.0mm
Water capacity 37.6L
Nominal working pressure 3.1Mpa
Hydraulic test pressure 4.2Mpa
Body Height 833mm
CMXD6000 POWER METER
The CemetPTM CMXD6000 Power Meter is the ideal fit for cost management applications. It provides the measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality of the electrical network.
Three phases, neutral and ground can be monitored simultaneously
Power quality measurements
Data recording
Graphical display, large characters and powerful backlighting
Easy to understand menus
Text in 8 selectable languages
Highly accurate devices with global billing certifications
IP52 front display
Single 96 x 96 mm unit
Applications:
Cost management
– Sub billing / tenant metering
– Cost allocation
Network management
– Basic Power Quality monitoring
– Min/ Max monitoring with timestamp
– Alarming
– WAGES monitoring
H13 Portable Ultrasonic Flow Meter
The H13 Portable Ultrasonic Flow Meter is the latest generation of portable clamp on flow meters from GE Panametrics. It has been designed based on its predecessor, the H13 Portable Ultrasonic Flow Meter, following on from years of feedback from users of portable flow meters and how they are used. The user interface, clamping fixtures and transmitter have all undergone a complete redesign.
The H13 Portable Ultrasonic Flow Meter uses wireless Bluetooth technology to communicate with the transmitter and tablet. The PT900 android app features a setup guide wizard to enable first time users to quickly setup the meter and get measurements within minutes.
The H13 Portable Ultrasonic Flow Meter has improved accuracy over the H13 Portable Ultrasonic Flow Meter ±1% of reading (50 mm or greater pipe sizes) and ±2% of reading (15 – 50 mm pipes sizes). Compatible with a wide range of transducers to suit most pipe sizes and materials, both lined and unlined pipes.
Additional available accessories:
- Energy kit
- I/O (input/output) cables
- Rechargeable battery pack
- GE PocketMike thickness gauge
- 100 ft extension cables
- External battery charger for spare battery
The PT900 is ideal for many types of survey:
- Energy surveys – the PT900 can be combined with an energy kit to become a full energy meter for use on heating and cooling systems. Testing efficiency of hot water systems.
- Water usage surveys – ideal for leak detection and monitoring water consumption. It can also be used for verifying flow rates of other flow meter technologies
- Chemical dosing – ideal for measuring the dosage of chemicals as there is no contact with the actual chemicals. Meaning there is no problem with highly acidic or alkaline chemicals.
Manufactured by: GE Panametrics
Model: PT900 Portable Ultrasonic Flow Meter
- Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- Applications
- Potable water
- Wastewater
- Cooling and heating water
- Ultrapure water
- Water/glycol solutions
- Crude oil
- Refined hydrocarbons
- Chemicals
- Beverages

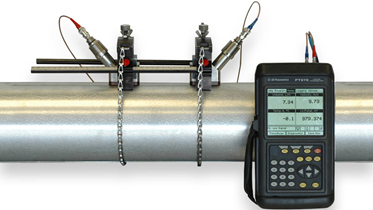

PT878 Portable Ultrasonic Flowmeter
The Panametrics PT878 clamp-on ultrasonic flow meter is universally regarded as the best portable ultrasonic flow meter and can be used to measure a wide range of clean and dirty liquids, even with some gas bubbles or solids. It can be used on pipes from 0.5 inch to 300 inch (12.7mm to 7.6m) on all metals and most plastics without the need to cut into the pipe.
The PT878 portable ultrasonic flow meter can be set to log up to 100,000 data points which can be downloaded to PC via its USB port . The data can then be exported to csv file and viewed in excel format.
The PT878 portable flow meter is a compact transit time (time of flight) portable flow meter suitable for a wide range of non invasive flow measurement applications. It has a wide range of optional transducers and clamping fixtures to suit all types of rugged industrial environments.
The PT878 clamp on flow meter is an easy to use flow meter which can be easily installed and up and running within minutes. The user simply has to enter the site parameters, clamp the transducers onto the pipe and adjust the spacing.
We have a wide range of clamp-on fixtures and clamp on transducers for sale or purchase. PT878 flow meter rental available.
Manufactured by: GE Panametrics
Model: PT878 Portable Ultrasonic Flowmeter
Services offered for this product
Sales
Rental
Installation
Calibration
Maintenance
Applications
Ultrapure water and liquids
Water / glycol solutions
Cooling and heating water
Wastewater
Diesel and fuel oils
Chemicals
Applications of Liquid Level Sensors
Liquid level sensors are useful devices with a very important function in industrial industries; they ensure that all processes and operations in these industries function as they should, without a glitch. The main purpose of a liquid level sensor is to monitor and control the level of liquids in huge tanks and vessels.
Ultrasonic-level-Sensor
Switches International Ultrasonic Liquid Level Sensor
- Liquid level sensors offer the following benefits
- Health security
- Time-efficiency
- Effort consumption
Which Industries Use Liquid Level Sensors?
Below is a list of some of the applications of liquid level sensors.
Food and Beverage Industry
In order for food and beverage companies to maintain their reputation, they need to ensure that their products are up to a certain standard. In this industry, liquid level sensors are utilised to ensure the consistency of the taste and smoothness of products. Liquid level sensors are used to detect the quality of milk, beer, wine and other relevant substances. Factories such as chocolate factories make use of ultrasonic liquid level sensors.
Petrochemical Plants
In these plants, liquid level sensors are used for the detection of highly corrosive and acidic substances; this ensures that all processes function accordingly. As in the food and beverage industry, the petrochemical industry uses ultrasonic liquid level sensors because they are non-contact devices; this means that they ensure safety while detecting the quality of substances.
Water Reservoirs
Here, liquid level sensors are used to monitor and control the water levels in massive water reservoirs; this is done to ensure that processes such as electricity generation function optimally.
EG_FUEL-Level-Sensor
EG-Fuel Level Sensor
Without industrial level sensors, the operations in industrial industries would not function as required. The most common liquid level sensor is the ultrasonic level sensor, which detects viscous liquids and bulk solids. Other liquid level sensors include the EG-Fuel level sensor and the FOAM level sensor.
B09 Intelligent Level Transmitter
Introduction
B09 Intelligent Level Transmitter is the full stainless steel construction and full-sealed submersible intelligent level transmitter with high accuracy. It uses highly reliable and stable pressure sensor, intelligent processing circuit, precise digital temperature compensation and linearity correction technics for production.
The water-proof cable connects with housing sealed, with vented tube putting in, the level transmitter could be used in the water or liquid in a long time. Integrated construction and standard output signal could provide easy operation and good automatic control. With 2-wire working, compact size, light weight and easy installation and operation, B09 Intelligent Level Transmitter is widely used for industry field instead of normal 2-wire 4~20mADC analog output transmitter.
Features
4～20mADC 2-wire current output;
Digital temperature compensation and linearity correction;
RS485 communication interface(Custom protocol) or HART communication protocol（optional）;
Netting application;
Full stainless steel construction, compact size, light weight;
Special requirement available;
RoHS Certificate
Intrinsic safe ex-proof version conforming to GB3836.4 ExiaⅡBT6 Ga Regulation; Ex-proof Certificate is issued;
Marine type products accord with CCS classification of sea-going steel ships of the rules “(2006) the requirements, has obtained the type approval.
Note: The min.shrinked available range is 1/5 of basic range;
For the other pressure range between min.range and max.range, but not indicated on the above table, we enlarge the above basic pressure range to produce (overpressure unavailable);
Total accuracy ①③
±0.075%FS（min.） ±0.1%FS（typ.） ±0.25%FS（max.）
Stability
±0.2%FS/year
Compensation temp. ②
-10℃～70℃
Operation temp.
-10℃～80℃
Storage temp.
-40℃～100℃
Power supply
10V～28VDC（RS485）, 12V～30VDC（HARTâ）
10V～12VDC（The Ann model, the security gate power supply）
Output
4mA～20mADC
·RS485 communication interface(Custom protocol)
or HARTâcommunication protocol
Load
4mA～20mADC output,（U-12V）/0.02A（Ω）
RS485 bus line could connect with 99 transmitter
Insulation
100MΩ/50V
Shock
20g，20Hz～5000Hz
Impact
20g，11ms
Protection
IP68(Transmitter part);IP65(Junction box part)
Media compatibility
Diaphragm: stainless steel 316L
Housing: stainless steel 1Cr18Ni9Ti
O-ring: Viton
Weight
~250g
